CHILDREN'S HOSPITAL LOBBY SCULPTURE STUDIES - 1

Click for more details on page 2 Click for more details on page 3

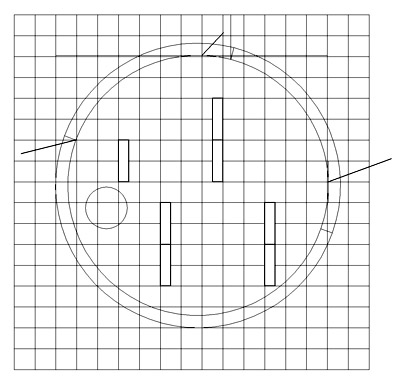

3 points near the ceiling grid (from the photos) that create the wall circle diameter of 24'-11.4"	Axonometric of the curved lobby wall showing the approximate location of the control joint.

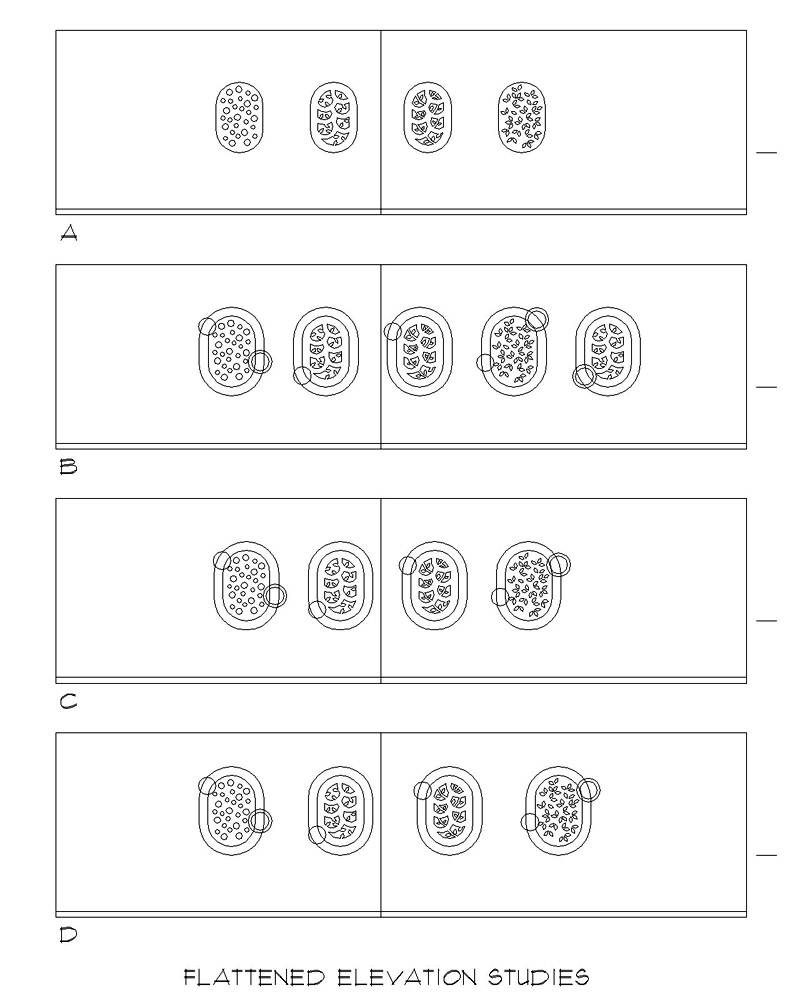

		Notes on design sketches:
	A:	The patterns from the 8' exterior tree modules (minus the trunk) were scaled to 48" high and shown 42" off the floor.
		Space between elements was set as equal to the element width. 4 units are shown.
	B:	A 6" border was added to the A Scheme, making the bottom of the elements 36" off the floor
		Circles indicate locations for the ceramic elements. These can be moved or modified as desired.
		The pattern will be adjusted as necessary to accomodate the ceramic elements.
		A 5th element was added. The right hand element is 6'-0" from the right end.
		The frame around the center patern can be a differnt color that the center part.
	C:	Similar to Scheme B only with 4 elements.
	D:	Similar to Scheme C only raised 6" so that the bottom is 42" off the floor.
		The spacing between elements was increased

for lobby photos click on link below

Please contact me with your comments and questions by email at peter@petermichel.com or mail at the address below.
