CHILDREN'S HOSPITAL LOBBY SCULPTURE STUDIES - 2 |
Click for earlier studies on page 1 Click for further studies on page 3 |
.
|

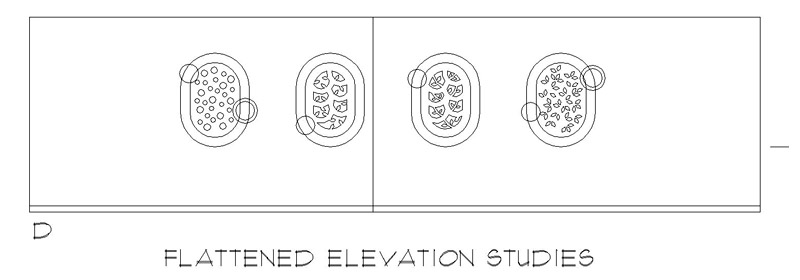

![Flattened Elevation Studiy D](images/TCH-LobbySculpture-ElevationStudy-D-800.jpg)
|
![Plan - scheme D](images/TCH-LobbySculpture-Plan-D-800.jpg) |

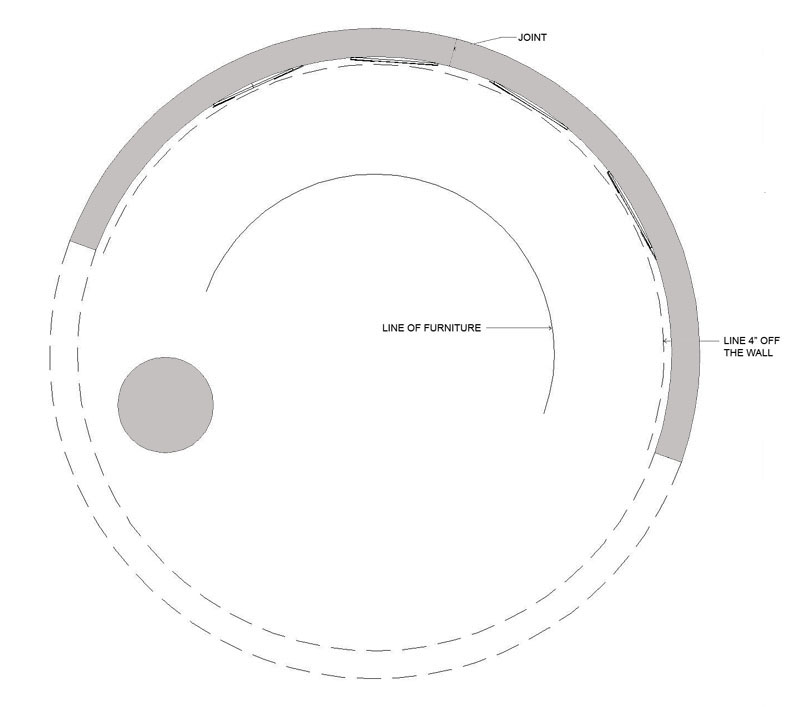

Lobby curved wall partial plan - sculpture scheme D |
![Plan Detail](images/TCH-LobbySculpture-PlanDetail-01a-800.jpg) |

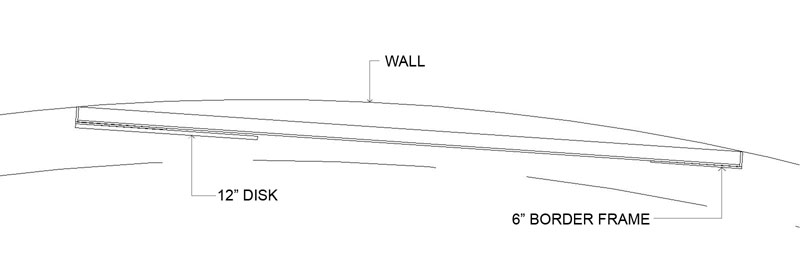

Sculpture panel (second one from left) detail |
![Edge detail 01](images/TCH-LobbySculpture-EdgeDetail-01-400.jpg) |
![Edge detail 02](images/TCH-LobbySculpture-EdgeDetail-02-400.jpg) |
EDGE DETAIL 1
Sculpture edge detail with 1" return
1/8" metal thickness assumed |

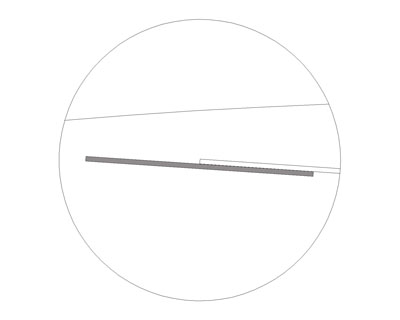

EDGE DETAIL 2
Sculpture edge detail - 1" from wall at end
1/8" metal thickness assumed |
![Color study](images/TCH-LobbySculpture-ElevationStudy-D-C1-800.jpg) |

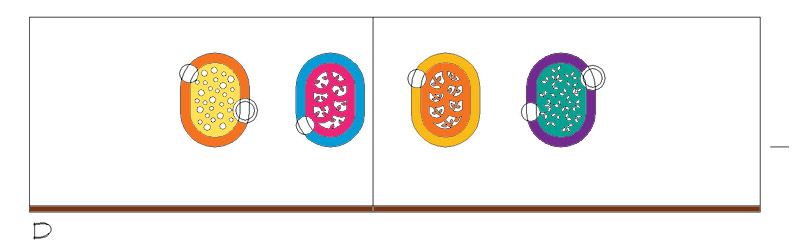

Color study using colors from exterior tree sculptures |
. |
