BAYSTATE CHILDREN'S HOSPITAL SPECIALTY CENTER
Wall Sculpture Production Sequence
to see drawings of the proposed wall sculpture design - click here
to see photos of the fabrication progress - click here
.

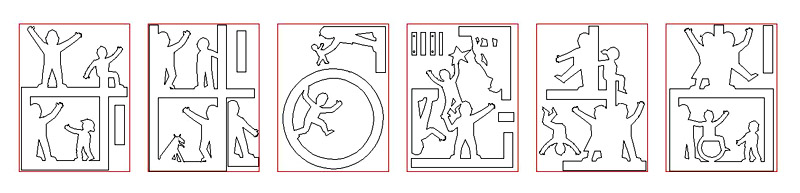

Waterjet cutting layout with 8' x 6 ' sheets
1 Nesting pattern:
sculpture parts to be waterjet cut from six 6 x 8 foot sheets of 3/8" 5086 (marine grade) aluminum alloy

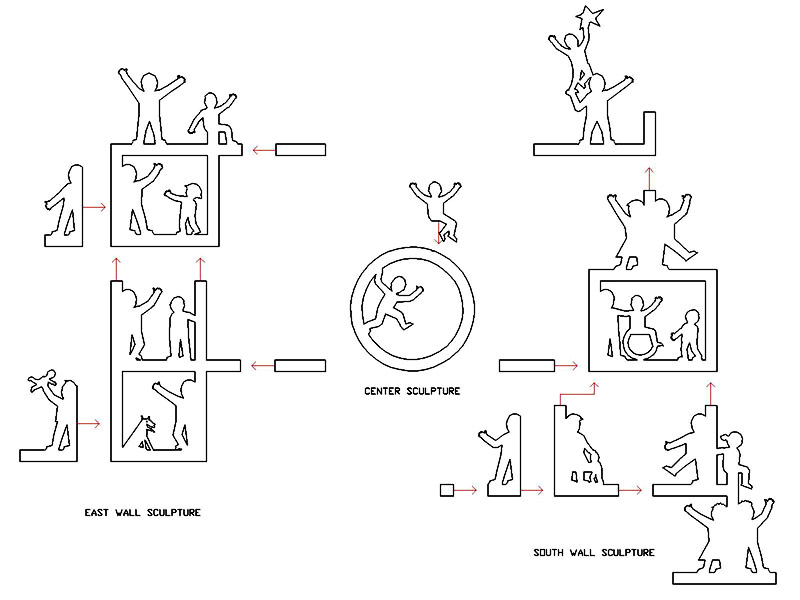

Waterjet parts ready to weld
2  Parts to be welded - positioned for assembly

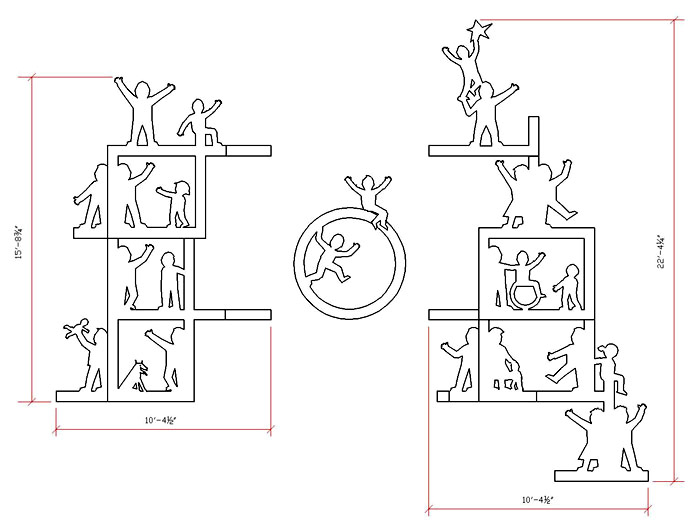

Waterjet parts connected - with dimensions
3  Wall sculpture elements:  East Wall Sculpture, Center Sculpture and South Wall Sculpture
showing weld joints - joining parts from waterjet cutter

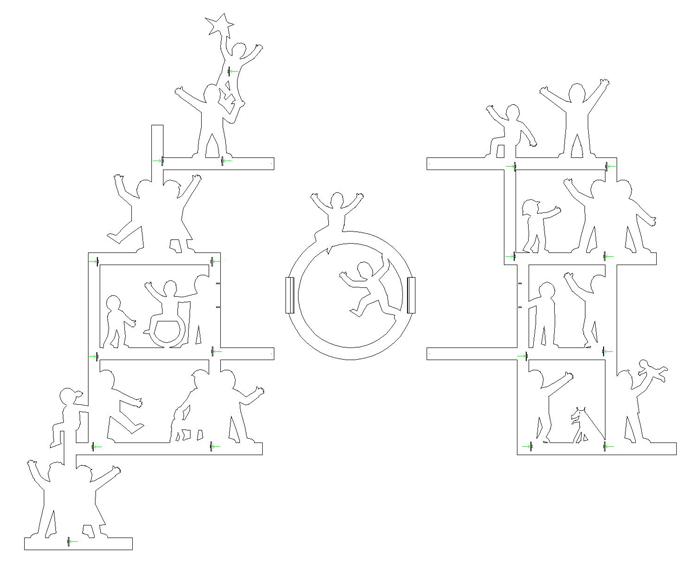

Welding support brackets to back of sculpture
4  Welding sculpture support brackets to the back of the sculpture

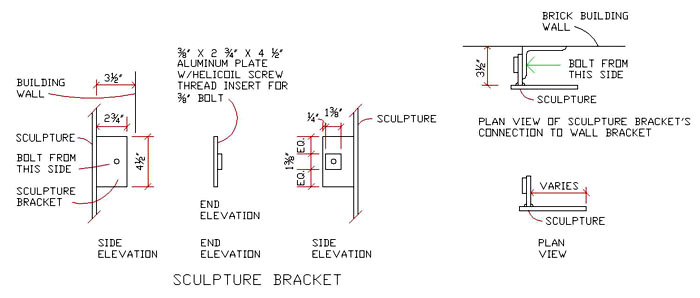

Sculpture Bracket details

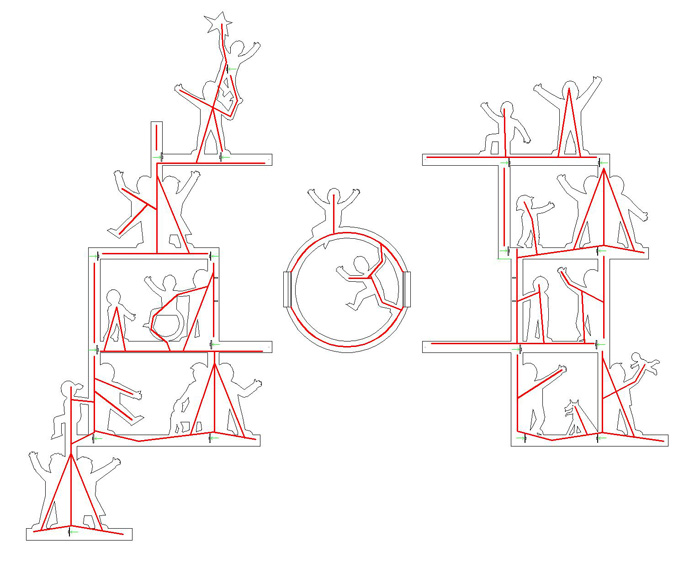

Stiffener Plates welded to back
5  1/4" x 2-3/4" aluminum stiffener plates welded to the back of the sculpture
Painting the figures

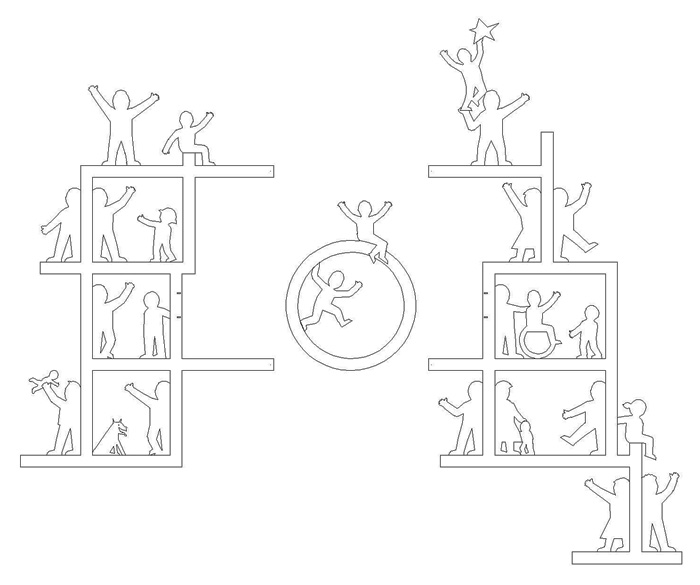

 6  Figures outlined for Painting (from CAD drawing)
.
Red
 Orange
 Yellow
 Green
 Blue
 Purple
pms 186
 pms 165 pms 108 pms 355 pms cyan pms 267
Pantone color designations  - brackets will be painted to match brick color
.

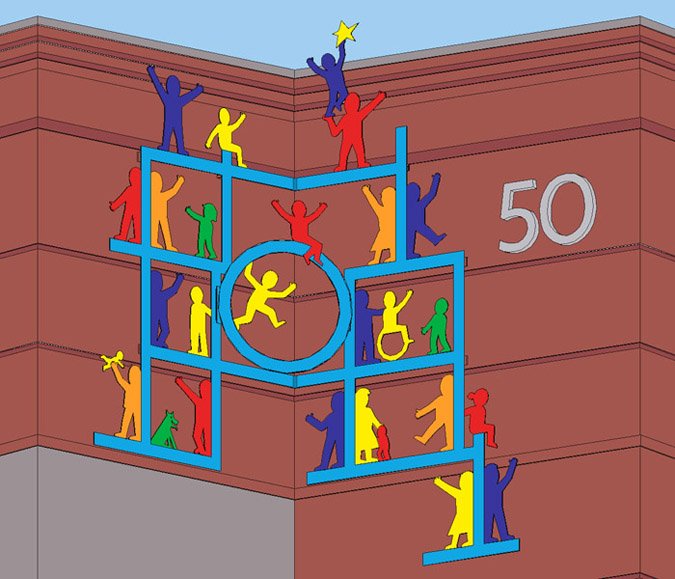

Color scheme

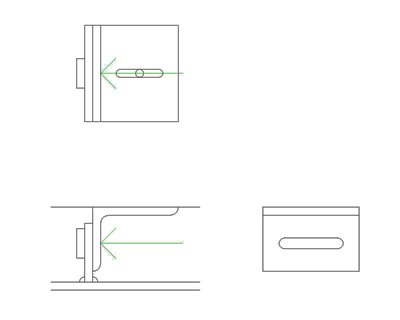

wall bracket assembly
(Top)  Wall Bracket assembly in elevation (Bottom left) Plan View  (Bottom right) side elevation - wall bracket

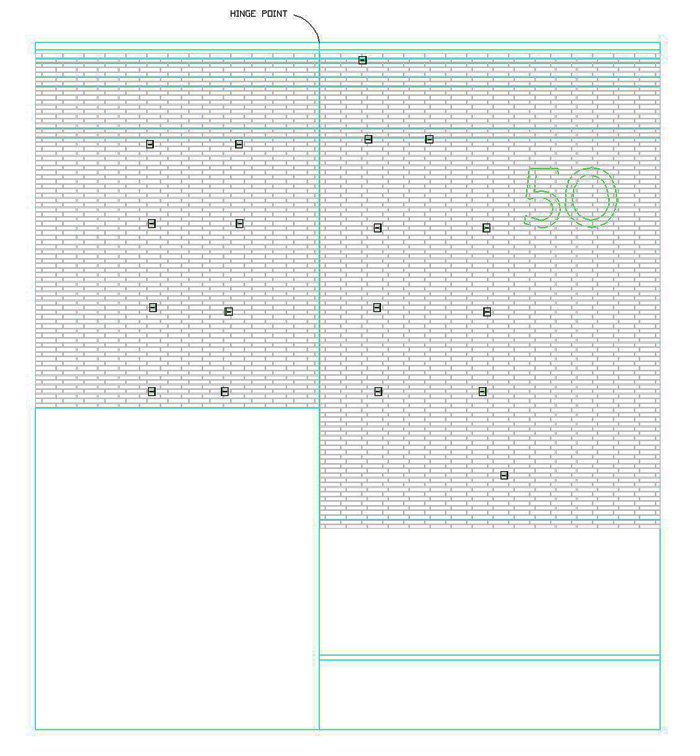

Wall Brackets set on the wall
Setting the Wall Brackets on the brick walls

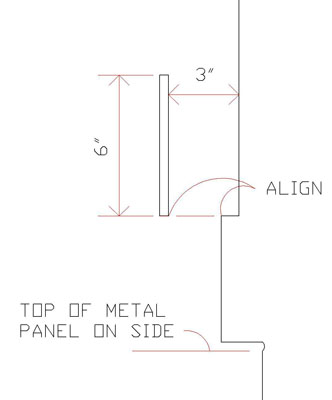

Profile at bottom edge of side elements






Section profile at bottom edge of
the East wall sculpture.
(3" dimension should read 3-1/2")

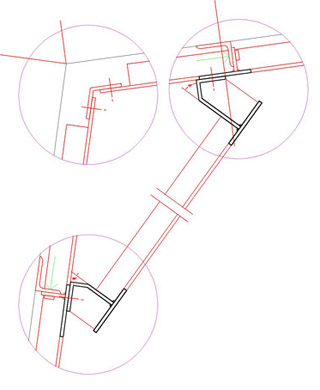

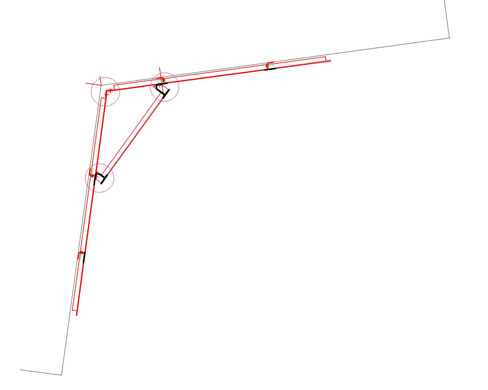

Plan View Circle attachment
                                      Plan View                                                                    Center Circle attachment
                        Sculpture is held 3-1/2" off wall

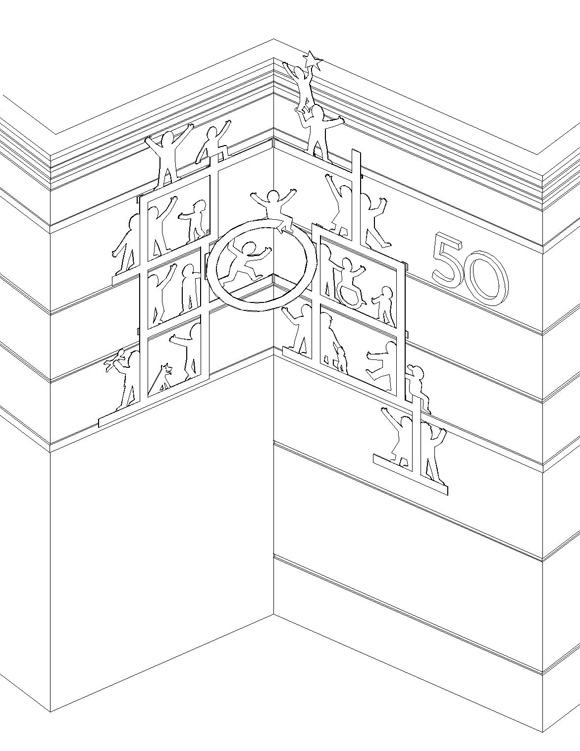

Isometric View

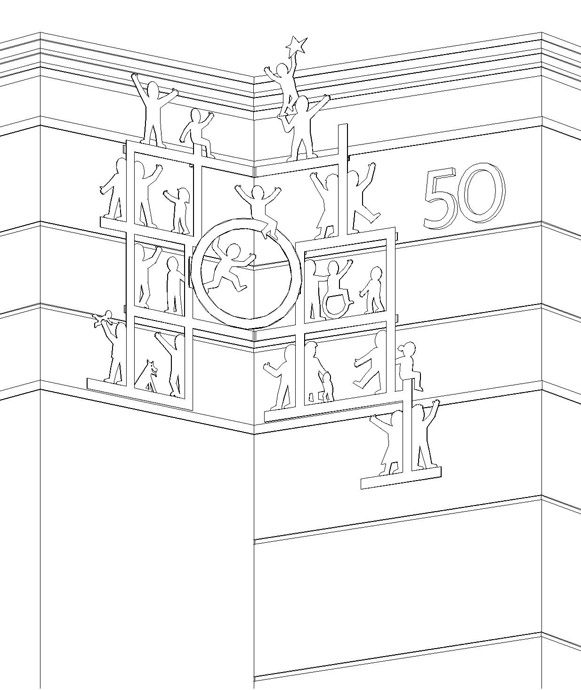

Isometric View
Isometric View
View from below

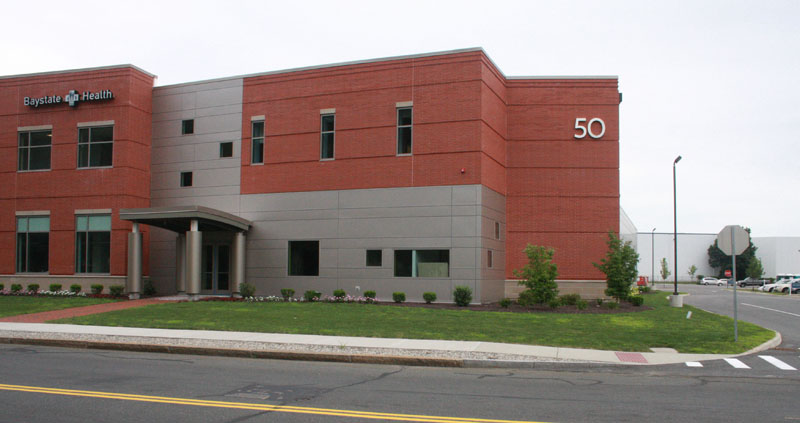

Baystate Children's Hospital Specialty Center
Baystate Children's Hospital Specialty Center - 50 Wason Avenue - Springfield
